Product

Peltier Applied Products

Cooling Ventilation Sheet for Vehicle

Product Overview

  • - Different from the existing ventilation sheets, our cold air sheet is
      made with Peltier element and only used for large sedans and imported cars.
  • - Since our Peltier element technology is similar to a small-size air conditioner,
       it differs from the ventilation technology using a fan.
       The Peltier element applied sheet allows users to have a cooling driving
       by decreasing the temperature of the back and bottom of a car seat where the air
       conditioner (about below 4℃) does not reach.
  • - Our product is eco-friendly, low-power by not using refrigerant.

Cooling Kit

Product Overview
- Our product is mountable on a truck, an office chair, a wheelchair, etc.
   People using public transportation can carry our products.
- It is handy for workers working outside under the hot weather as they can carry a portable battery with them.

Semiconductor Business Unit

Semiconductor Electric Dryer

Product Overview

  • - Our product can even remove powder by drying steam with the installation of a dryer in the scrubber.
  • - The steam from a wet chamber becomes liquified while going through a cooling rod.
  • - The liquified moisture and a certain amount of powder get down to the chamber due to gravity.
  • - We made a cooling block with Peltier element, allowing us to maintain the optimal temperature.
  • - We coated its inside with Teflon strongly resistant to chemical to prevent corrosion.

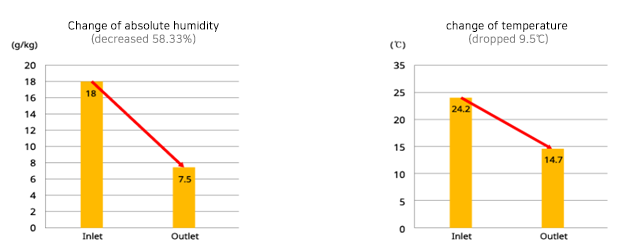

    • Application Effect
    반도체사업부 - 반도체용 전기식 제습기 - 적용효과

    반도체사업부 - 반도체용 전기식 제습기 - 제품소개

    Chiller’s Cooling Block

    Product Overview

  • - Our device maintains a stable temperature in the semiconductor process.
  • - We secure the technology below the 3.6Kw level as of the coolant capacity standard.
  • - We reduced electricity usage 70%; we lowered CO₂ level by using eco-friendly materials;
      and we improved cooling performance by downsizing and enhancing performance of
      our product.

    • 반도체사업부 - Chiller 냉각블럭 - 제품소개

    Safety-monitoring System on Smart Facility

    Fan & Temperature Monitoring System (FTMS)

    Product Overview

  • - Our product enables us to quickly detect a problem by monitoring the current
      given to a fan in real time. When abnormality occurs, an alarm is generated.
  • - Alarm occurs if a connected device exceeds the pre-defined interlock range
      by checking the internal temperature and current value.
  • - Communication frequency (2.4GHz), communication distance (more than 10m).
  • - Workers can check values even in the field thanks to displaying the values of
       temperature and current by receiving the data in real time.
  • - We can protect PCB from an external environment by manufacturing
       an aluminum case not to be affected by the semiconductor process
      (high frequency, high voltage, etc.) (10 units per set).



    • Operation Principle

  • - DC sensor module: Detection of a current change in a fan, detection of ambient temperature,
      and wireless communication (effective distance 10M)
  • - AC sensor module: Detection of a current change in a fan (switching current sensor),
      detection of ambient temperature, and wireless communication (effective distance 10M)
  • - The values detected by a sensor module are sent to a server PC in real time
      via wireless communication.
  • - Server PC: Display the values received in real time on LED simultaneously.
      If the values deviate the pre-defined interlock range, an alarm is generated.



    • Scope of Application

  • - Device where an AC or a DC fan is installed.
  • - Facility where an electric current of a smart factory and a heat detection sensor are installed.
  • - Places with danger of fire due to heating

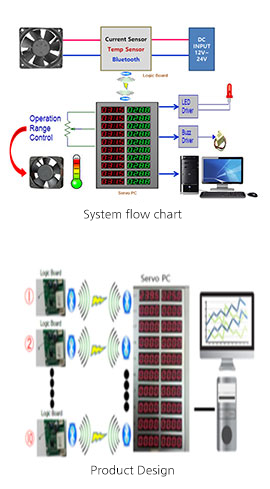

  • - System flow chart, product design

    • 스마트 설비 안전진단 시스템 - FTMS - 제품소개 스마트 설비 안전진단 시스템 - FTMS - 제품소개

    Wireless Leak Monitoring System

    Product Overview

  • - Our system monitors any leak of water, chemical, and gas by being merged
      with the IoT technology.
  • - We can prevent environmental accidents in the semiconductor and display
      process by generating an alarm when a signal sent to each sensor delivered to a host.
  • - We develop and sell our system by applying it to the safety management
      system of a smart factory.
  • - Communication frequency (2.4GHz), communication distance (more than 200m).



    • Principle of Product

  • - Sensor module : Our sensor module is composed of 10 units.
    ① Length of water leak sensor: 200mm
    ② Detection of 4 water leak spots per sensor module channels) (4 channels)
  • - Host: Window of displaying the total of 40 channels on LED
    ① Alarm function (LED lighting system, buzzer, lamp)
    ② Output: Contact system (A&B contact)
  • - Wireless communication (2.4GHz), communication distance (more than 200m)



    • Application Effect

  • - Water leak detection
  • - Wireless communication (2.4GHz), nRF20L01 is mounted.
  • - Alarm is generated by sending a signal remotely.
  • - We can check water leak spots with display.
